Talon Check-it

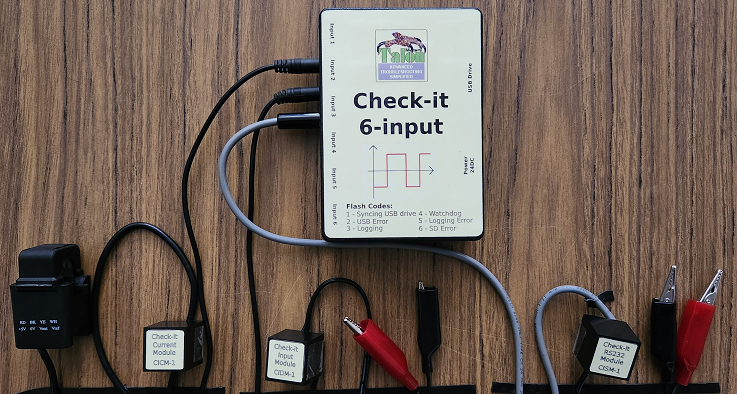

Introducing the NEW Check-it datalogger

  • Up to 6 pods can be attached
  • Each pod can be a voltage, current, digital, or serial input
  • Trigger on a logic table
  • Conditions before the trigger are recorded too
  • Log files are saved to the internal flash memory
  • Files can be synced to an USB drive
  • Files can be viewed and exported
  • An app is availiable for android that performs:
    - Real time data viewing
    - Setting up parameters
    - Setting the RTC on the unit
    - SD card maintenence
  • 1K sps maximum logging speed (analog pods may limit this)
  • Pods can be setup to trigger faster (e.g. on edge)
  • Some of the general pods are:
    - 5 - 24 Volt opto digital input
    - 48 Volt analog input
    - DC current probe
    - AC current probe
    - RS232 listener
  • Other pods can be configured as needed
  • Ask about any custom cables needed
